EK 9200 Parking systems PARKOM

The EK 9200 PARKOM semi-automated parking system solves parking problems in a simple, efficient way. The EK 9200 PARKOM is built easily. The system combines lifting and horizontal sliding pallets for vehicle transfer. It can be carried out in two versions: either as the PARKOM 234 two-story building or the PARKOM 345 three-story building. The entrance pallets are always at ground level. At the entrance and exit, at the level of horizontal transfer, there can be design space for lifting the vehicle. The client can customize the PARKOM system, choosing additional functions. The system function operation is controlled by the central control system. The customer can customize the control system according to the demands and usage, i.e. the system provides private or public parking. The PARKOM’s construction can be built with the maximum ten parking perpendicular spaces.

PARKOM 345

The PARKOM 345 is a three floor semi-automated parking system.

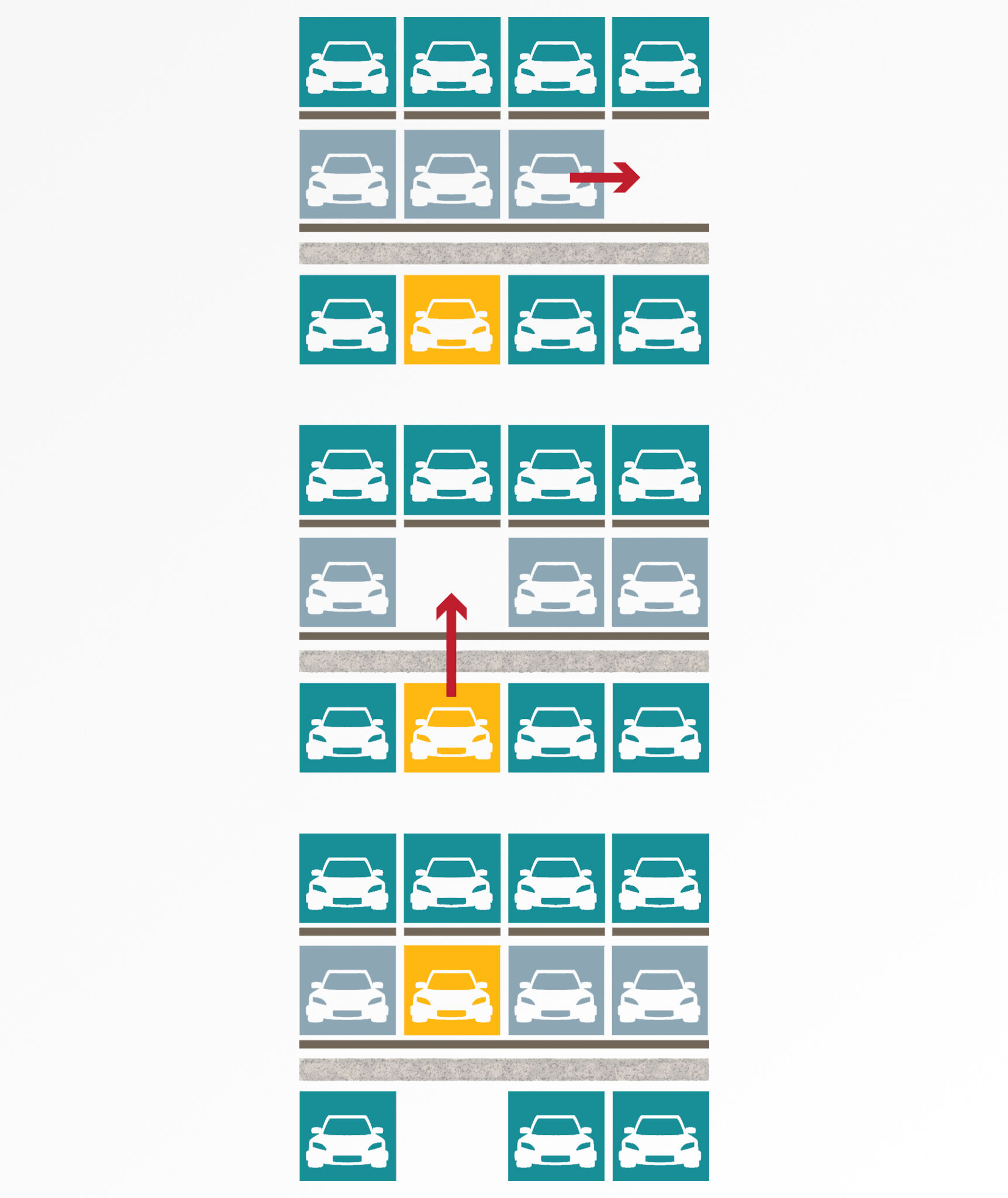

The system can be installed with a foundation pit (partially embedded in the ground) or without the foundation pit (above the ground). The entrance pallets are always at ground level. The horizontal motion of the pickup pallets makes it possible to create a space through which the vehicle can be picked up when entering or exiting from the top and bottom position.

The system can be equipped with optional accessories according to the client's choice (turntable, access system, ramps etc.).

All the PARKOM functions are operated by means of the industrial control system. Control systems can be customized to customer requirements and usage (private or public parking).

The system is a construct a structure which can house the maximum of ten parking spaces on three floors.

The PARKOM semi-automated parking system is available in different vehicle heights in a range between 155 cm and 220 cm at the vehicle's length of 540 cm and 230 cm wide.

The vehicle weight capacity is up to 2600 kg.

The PARKOM 345 maximum parking capacity is 29 vehicles. The individual facilities can be combined.


THE ADVANTAGES OF THE SYSTEM:

» compact system with minimal demands on the construction;
» various installation options - overground or partially embedded in the ground;
» simple installation into existing building;
» the possibility of delivering a system with or without cover;
» the minimal walking distance; quick access to stored vehicles.
